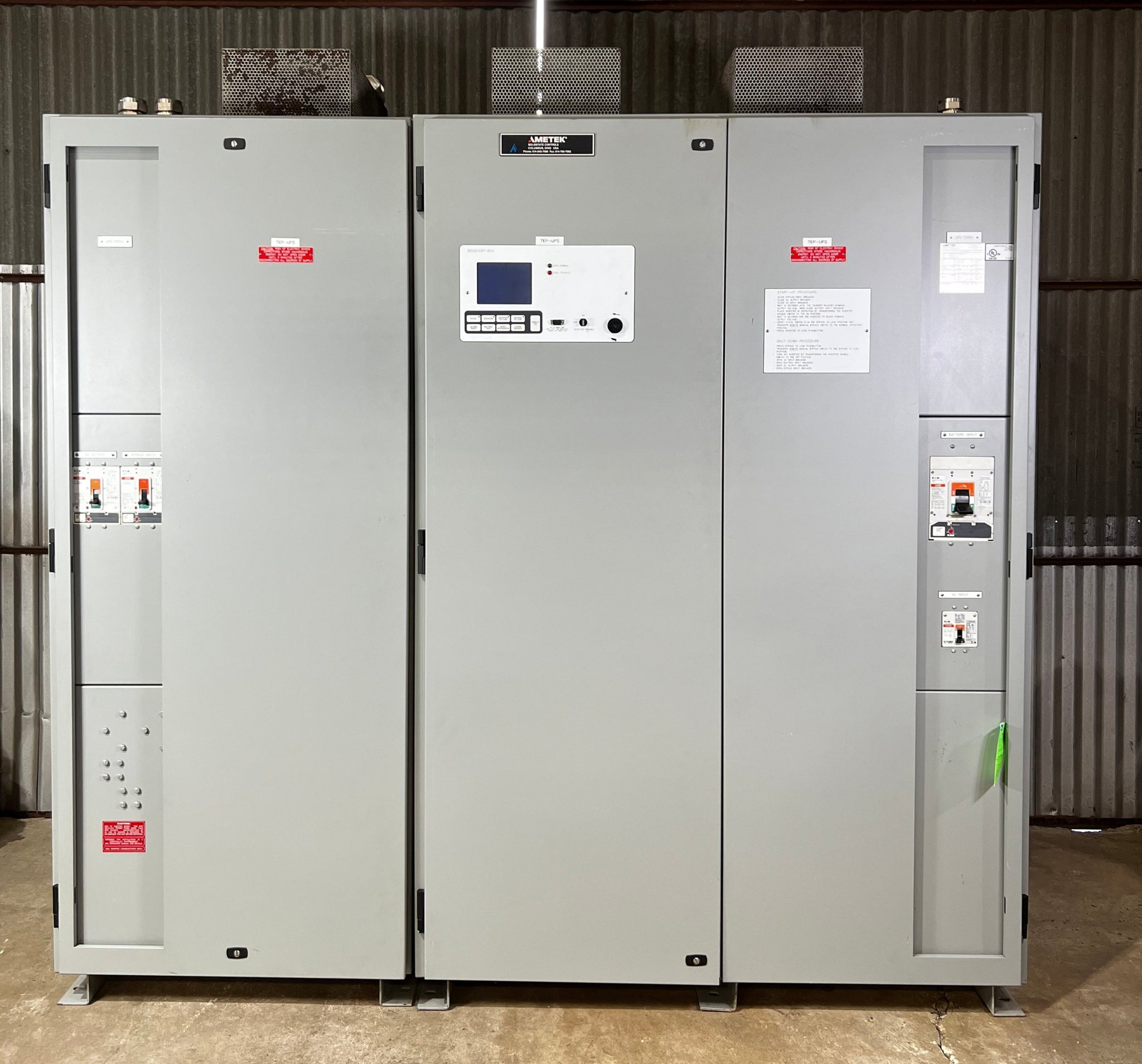

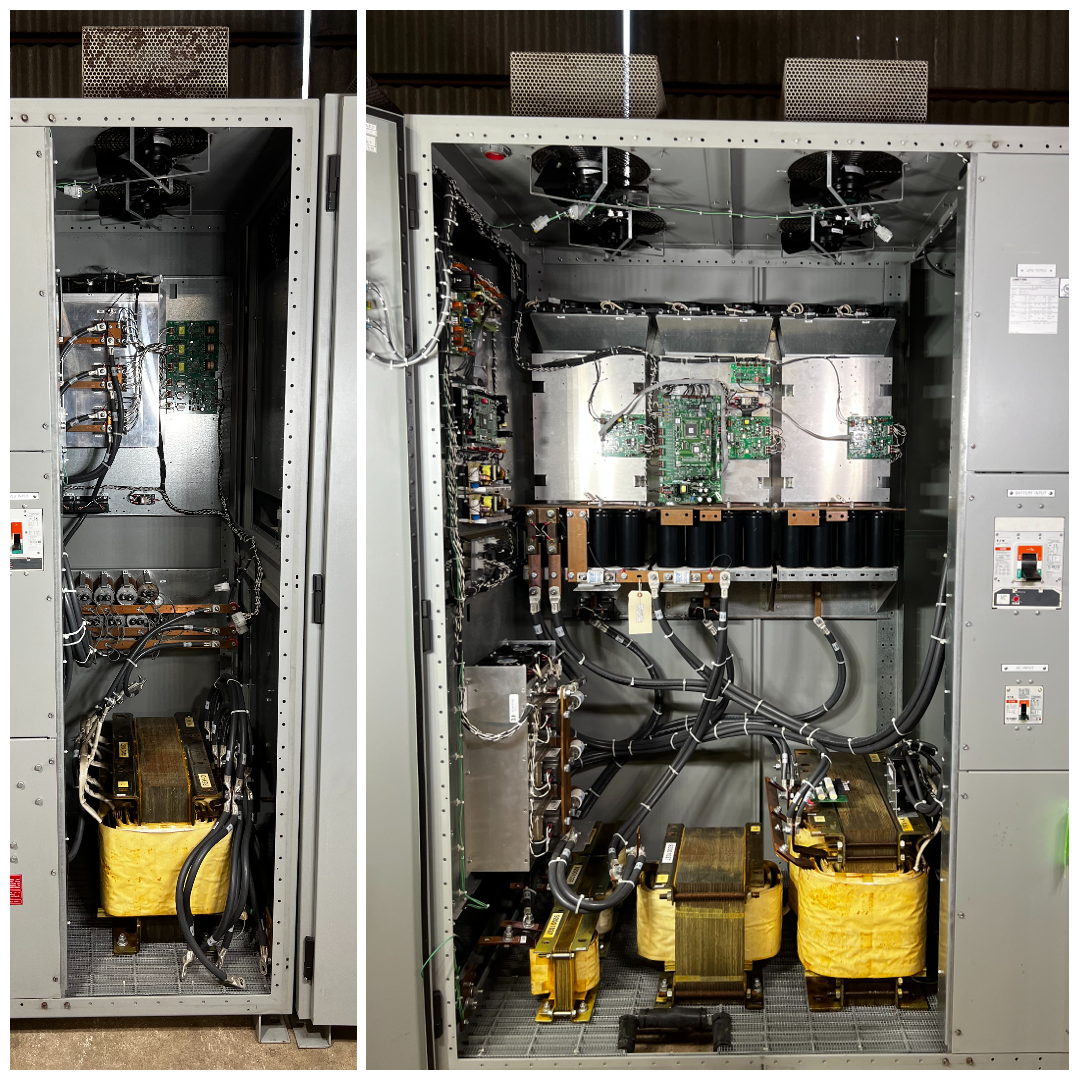

Ametek Solidstate Controls 50KVA Uninterruptible Power Supply (UPS) w/ 92001037-2-1 3RS500MB-20 50KVA Remote Manual Bypass Switch, Used

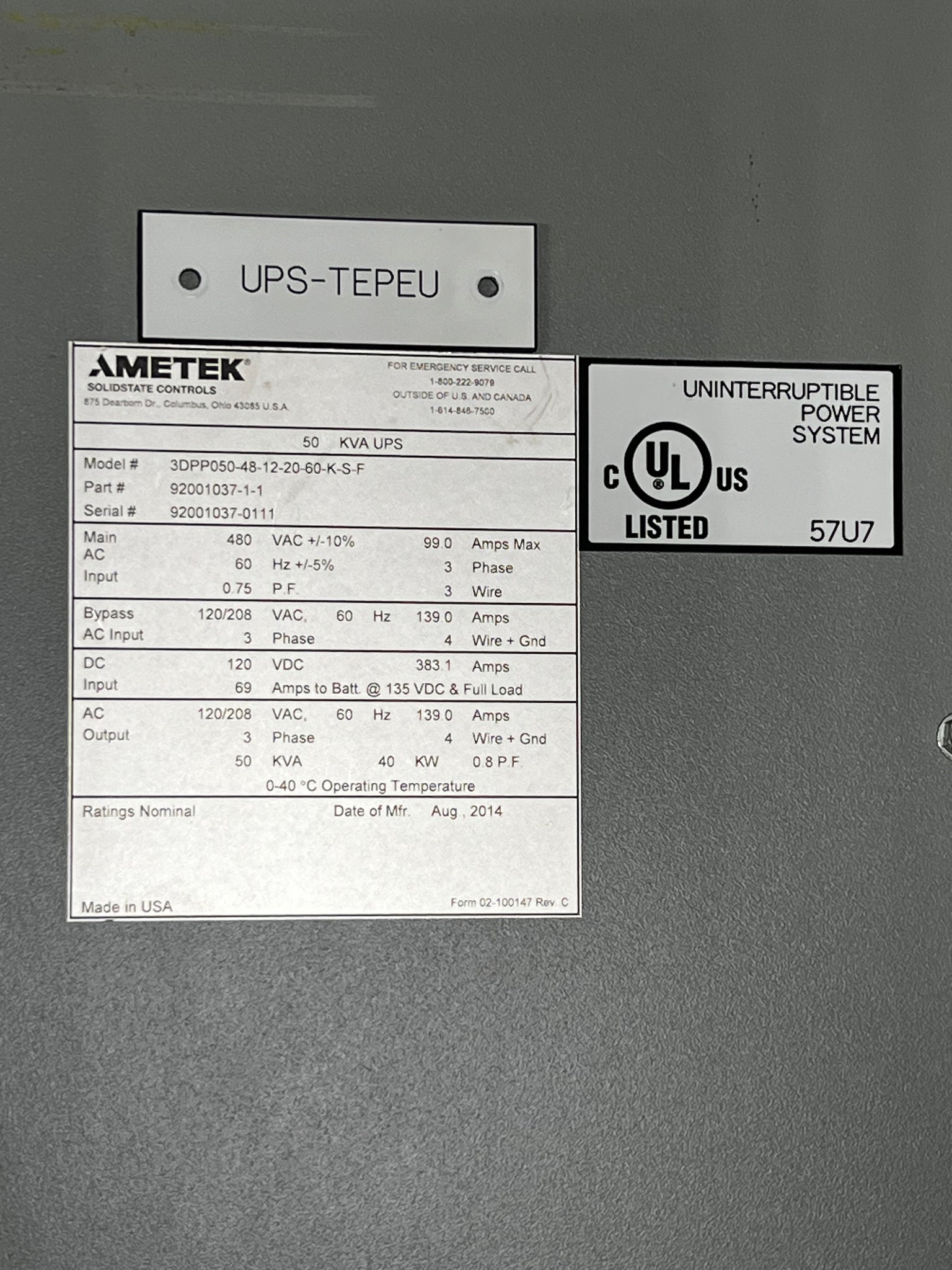

Specifications:
Model: 3DPP050-48-12-20-60-K-S-F
Part No.: 92001037-1-1
Serial No.: 92001037-0111
Year MFG: Aug 2014
Main AC Input
Voltage: 480 VAC +/-10%
Amps: 99.0 Max
Phase: 3
Hz: 60 +/-5%
Wire: 3
P.F.: 0.75

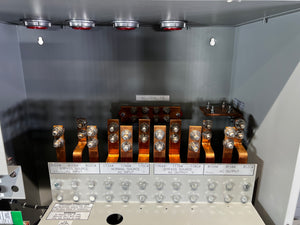

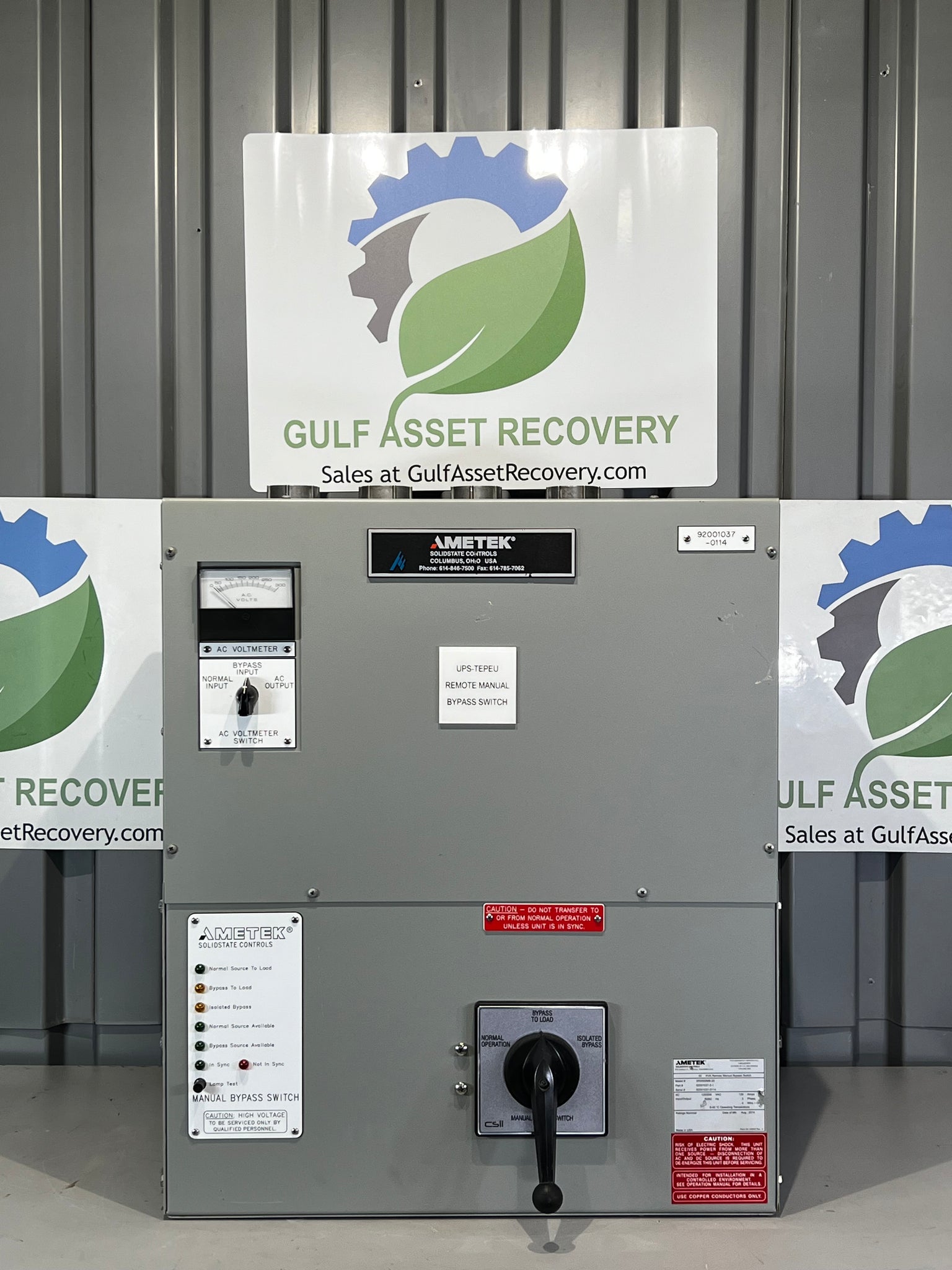

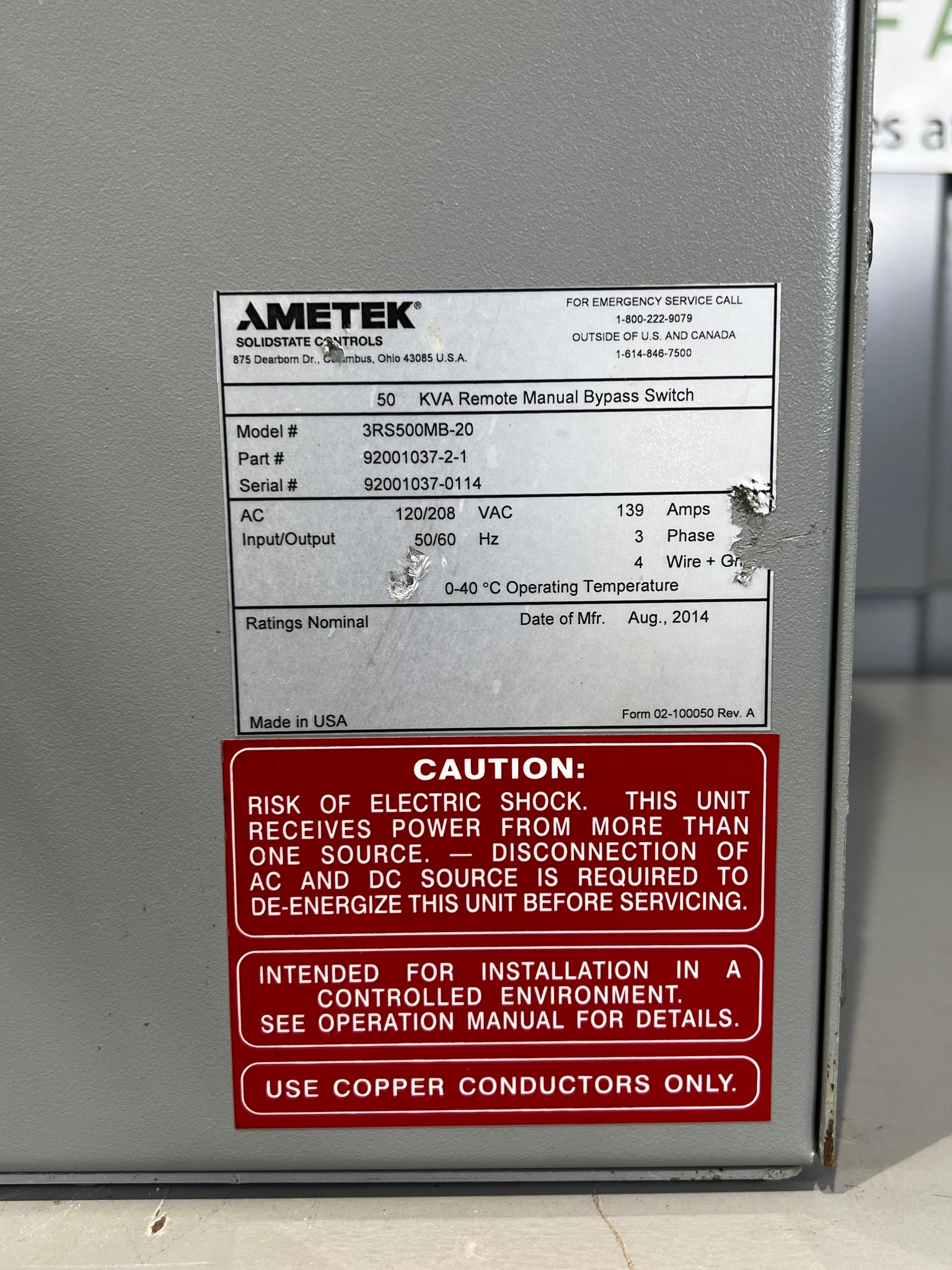

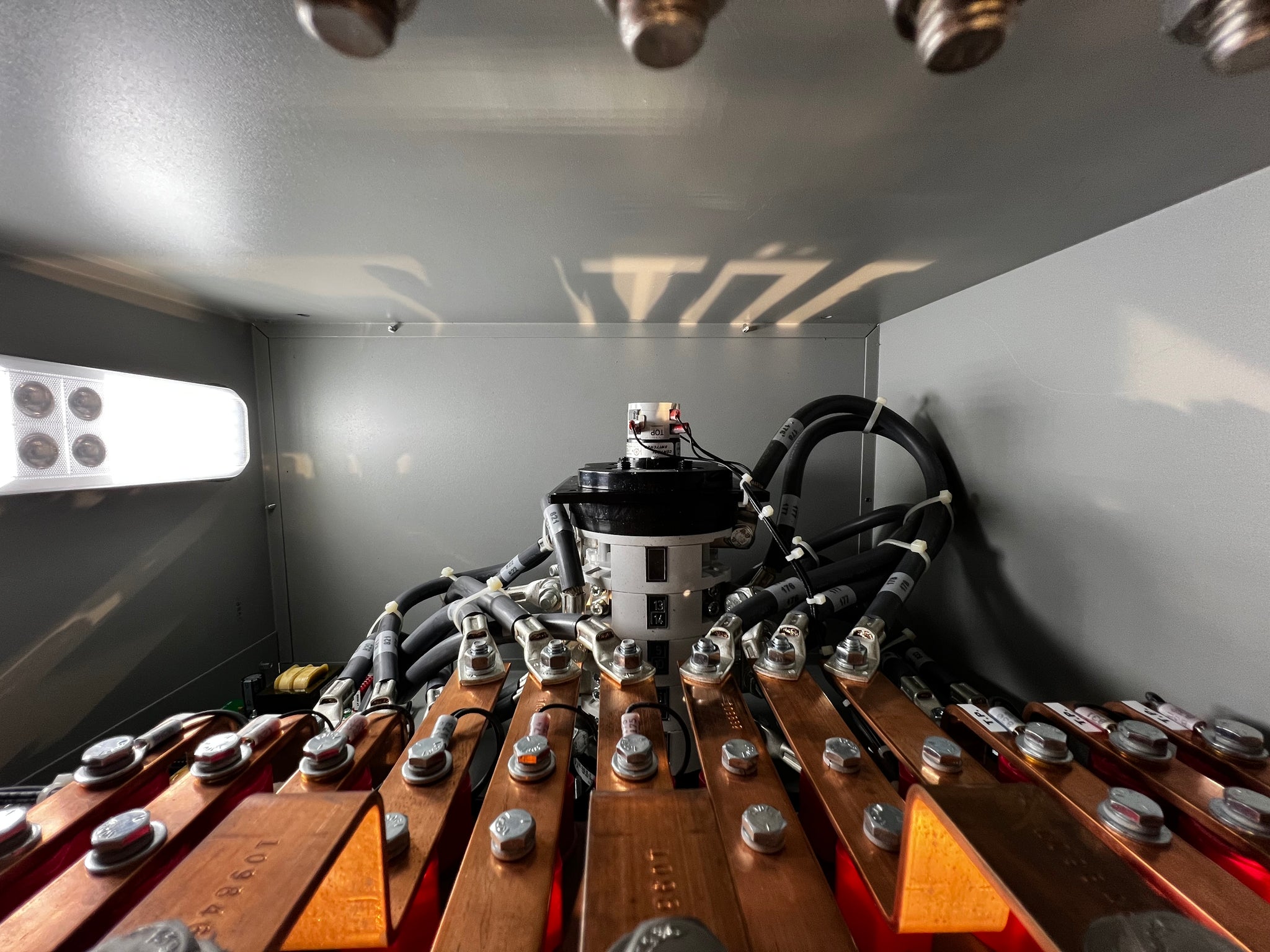

Bypass Switch Specs:
Model: 3RS500MB-20
Part Num.: 92001037-2-1
Serial Num.: 92001037-0114
Input/Output
Voltage: 120/208 VAC
KVA: 50
Amps: 139
Phase: 3
Hz: 50/60
Operating Temperature: 0-40°C
4 Wire + GND
Date of Mfr.: August 2014
Bypass AC Input
Voltage: 120/208 VAC
Amps: 139.0
Phase: 3
Hz: 60
Wire: 4 Wire + GND
DC Input
Voltage: 120 VDC
Amps: 383.1 Amps; 69 Amps to Battery @ 135 VDC & Full Load
AC Output
Voltage: 120/208 VAC
Amps: 139.0
Phase: 3
KVA: 50
KW: 40
Hz: 60
Wire: 4 Wire + GND
P.F.: 0.8
**FREIGHT** Buyer Responsible for all shipping costs and logistics. Free local pickup, free load-out assistance available. In order to receive a shipping quote, buyer must provide a shipping address and indicate whether it is a business or residential address, also if additional services are needed such as inside delivery or lift-gate.
*FREIGHT DIMENSIONS*
Pallet #1
LENGTH: 48 in.
WIDTH: 40 in.
HEIGHT: 92 in.
WEIGHT: 1,939 lb.
Pallet #2
LENGTH: 72 in.
WIDTH: 40 in.
HEIGHT: 92 in.
WEIGHT: 1,070 lb.
Pallet #3 (Bypass Switch)
LENGTH: 48 in.
WIDTH: 40 in.
HEIGHT: 20 in.
WEIGHT: 152 lb.
